InspiredLiving.com Health and Wellness Center
Air Exchange Systems

 Venmar Energy & Heat Recovery Ventilation

Venmar HEPA 4100
(Formerly HEPA 4000)
Heat Recovery and Humidity Control Ventilation Systems

Air Exchanger Systems for Home Ventilation

Click Here to Order Venmar Replacement HEPA Filter and Prefilters

Venmar heat recovery ventilators and energy recovery ventilators new life into your home or building and help reduce the risk of polluted air. Based on the principle of “bad air in, good air out,” these units revitalize your whole home, not just selected areas.

Mounting evidence has shown that dependence on the natural exchange of air between indoor and outdoor through air infiltration and exfiltration may not be satisfactory for good moisture control and indoor air quality. Plus traditional ventilation methods, like opening a window or use of a common fan, do not provide adequate ventilation. An Energy Recovery Ventilation system is the key to positive moisture control and heat recovery and will help ensure a healthy indoor environment for the occupants.

Mechanical ventilation systems are used to bring fresh air into and remove stale air from our homes. Two common types are exhaust-only systems and balanced systems. The exhaust-only system has a fan to provide exhaust air; the supply air is not fan powered. The balanced system uses a fan-powered exhaust airflow that is designed to equal the fan-powered supply airflow. The balanced systems may or may not have heat or energy recovery. Those with heat or energy recovery are commonly called Heat Recovery Ventilation (HRV) or Energy Recovery Ventilation (ERV). An HRV transfers heat while an ERV usually transfers heat and moisture.

Venmar Air Exchange Heat and Energy Recovery Ventilation Provide Pure Air for Whole House or Building Ventilation Systems

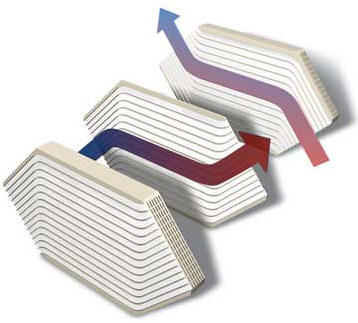

An Energy Recovery Ventilation system uses fans to maintain a low-velocity flow of fresh outdoor air into the building (incoming air stream) while exhausting out an equal amount of stale indoor air (exhaust air stream). Fresh air is supplied to all levels of the building while stale air is removed from areas with high levels of pollutants and moisture.

Energy Recovery Ventilator (ERV) and Humidity Control

Even though the Energy Recovery Ventilator (ERV) is suitable for colder climates, it is usually associated with warmer climate homes where humidity control is important. The ERV recovers heat; however, it also recuperates the energy trapped in moisture, which greatly improves the overall recovery efficiency.

The ERV process is as follows: In humid climates and air conditioned homes, when it is more humid outside than inside, the ERV limits the amount of moisture coming into your home.

In dry climates and humidified homes, when the humidity level is reversed, the ERV limits the amount of moisture expelled from your home.

Excess Humidity Control
Helps prevent uncontrolled excess humidity by expelling excess humidity from the air, thereby reducing the risk of window condensation, mildew and mold, which prevents structural damage and deterioration to your home.

HEPA Filtration: High Efficiency Particulate Air

The best way to achieve optimal air quality in your home is to combine HEPA filtration with Air Exchange. Together, they create the ultimate system for people who want a clean and healthy environment. HEPA filters capture 99.97% of all dust and particles as small as 0.3 microns (1 human hair = 150 microns). They can help reduce allergy symptoms, asthma, recurring colds and persistent coughs. In fact, HEPA filters are so effective, they’re used in hospital operating rooms.

Registered under Health Canada
License # 1409 as Class 1 Medical Device

Good news! If you're diagnosed with asthma, or other severe respiratory ailments, the Venmar HEPA Air Exchangers Systems are just what the doctor can now order to help you breathe a little easier!

Standard Features

Venmar is recognized as a leading innovator of technically advanced air exchange systems. You’ll breathe easier knowing that every Venmar unit comes with the comfort and convenience of the standard features described below.

	Recirculation Venmar units feature a recirculation setting, which allows you to filter your indoor air 24 hours a day and attain a consistent temperature throughout your whole home
	Electronic Wall Control (included) • Allows easy access to control your unit • Three modes (normal, boost and recirculation) • Filter maintenance indicator • Fresh air indicator
	Smart Temp When extreme outdoor temperatures occur, the Smart Temp mechanism automatically sets the time of air exchange in order to ensure the most comfortable indoor environment
	Peace of Mind Warranty All Venmar units come with a 2-year warranty

Choose the Model That Is Right for Your Home:
Heat Recovery or Energy Recovery

Venmar HEPA 4100 Energy Recovery Ventilator (ERV) $1321.95 FREE Shipping contiguous USA

Ideal for Warmer Climates
The Venmar Energy Recovery Ventilator HEPA 4100 (a HEPA 4000 upgrade) is an energy recovery ventilation system for a home or building up to 3000 sq. ft. This upgraded system is much more than a conventional energy recovery ventilator. In fact, this unit draws outside air and blends it with interior air. Then, a portion of the stale air is exhausted to the outside, preventing outdoor excess humidity from entering the house (just like everyone expects from an effective energy recovery ventilator). BUT this unit is also equipped with a microbial prefilter and a HEPA filter which traps airborne allergens such as pollen, dust, mold, bacteria, etc.

The following are other Venmar Energy Recovery systems, which come with other filter types or without filtration altogether.

• Constructo 1.0 (horizontal or vertical ports)

• Duo Series: Du0 1.3, Duo 1.4 and Duo 1.9

• HEPA 4100 (upgrade for the 4000)

Live in Cooler Climates and Heat recovery?

See the Venmar HEPA 3100 Energy Recovery Ventilator (HRV), which is ideal for colder climates

Click Here to Order Venmar Replacement HEPA Filter and Prefilters

Download HEPA 3000/4000 Installation Manual

HEPA 3100 and HEPA 4100 Installation Kit $190.05

This easy-to-use kit contains all components you need to install a Venmar HEPA 3100 or HEPA 4100 Air Exchange system:.

• 8 tie wraps 30“

• 2 duct connectors 8“ x 12“
• 2 duct connector baffles 8“x 12“
• 1 outside port backplate
• 1 dual outside port 8.72“ x 8.87“
• 1 outside port screen 3.8“ x 7“
• 1 outside port screen 3.8“ x 8.3“
• 20’ insulated flexible duct kit UL - 5“
• 45’ uninsulated flexible duct - 8“
• 1 Tandem transition
• 1 bag containing:
  • 2 X-mas tree pins 1/4“ x 0.79“
  • 4 screws #8-3/4“
  • 8 screws #8-3/4“
  • 4 screws #8-1.5“
  • 8 plastic anchors – 1/4“-1.25“
  • 2 blue dot stickers
  • 2 red dot stickers

Venmar HEPA 3000 HRV Technical Secifications

• Maximum ventilation area (volume): 3000 sq ft

• Rate of air flow: (cfm)* (low/high) 70-105 cfm

• Total air flow (cfm)*: 180-270 cfm

• Filter: HEPA

• Diameter of inside port: 8’’ (20 cm)

• Diameter of outside port: 5 or 6’’ (12.5 or 15 cm)

• Voltage: 120 volts

• Power: 224 watts

• Amp.: 2 amperes

• Dimension height: 29.4 in (74.8 cm)

• Dimension width: 22.9 in (58.2 cm)

• Dimension depth: 17.8 in (45.2 cm)

• Weight (approx.): 40 lb (18 kg)

• Wall control: C34 (included)

• HVI Certified (Home Ventilating Institute): Yes

• Warranty: Core or enthalpy wheel 2 years

• Warranty: Parts 2 years

* cfm: Cubic feet per minute

Get the Ultimate in Clean Air for Your Home

Combine an Air Oasis Induct Air Purifier with a Venmar Ventilation System and receive 10% discount off the Air Oasis induct unit.

The Venmar Air Exchange System is fabulous for recovering heat or energy, providing fresh air, controlling humidity and removing particulate (dust, pollen, dander, etc.), but by adding the powerful broad-spectrum pollution purification abilities of an Air Oasis HVAC Induct Air Purifier, you get the ultimate in whole-house clean air. Air Oasis air purifiers destroy bacteria, viruses, pesticides, herbicides, mold spores, chemical fumes and gases, VOCs, odors and more.

The residential and business HVAC (heating, ventilation and air conditioning) induct model is designed for use with forced-air heating and central air conditioning systems (HVAC) to purify the air in all rooms served by ductwork in small to large single-family homes and office buildings. Turn your central heating and cooling system into an air-cleaning machine to significantly reduce pollutants and contaminants in your entire home or business. For more information, see the Air Oasis Air Purifiers.
